Stainless Steel 317 Pipes Manufacturer, Supplier and Exporter in Bangkok, Thailand

Kamron Pipe and Tubes, a reputable manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Stainless Steel 317 Pipes that are built to offer outstanding strength, durability, and resistance to harsh environments. Thanks to their higher molybdenum content compared to standard stainless steels, these pipes provide excellent protection against pitting, crevice corrosion, and chemical attacks. Renowned for their toughness and stability at high temperatures, Stainless Steel 317 Pipes are perfect for demanding industrial applications. Kamron is committed to precision manufacturing, following international standards, and ensuring reliable performance, making their products a top choice across various industries.

317 Stainless Steel Pipes Exporter in Thailand, SS UNS S31700 Pipes Exporter in Chiang Mai, 317 Stainless Steel Pipe Manufacturer in Pattaya, SUS 317 Pipes Price List in Thailand, ASTM A312 Stainless Steel 317 Pipe Supplier in Rayong, Stainless Steel 1.4449 Pipes in Nonthaburi

These pipes are made from a blend of chromium, nickel, and increased molybdenum, which boosts their resistance to acidic and chloride-rich environments. On a mechanical level, they boast high tensile and yield strength, remarkable toughness, and good creep resistance even at elevated temperatures. Some of their key benefits include enhanced corrosion resistance, durability in tough service conditions, ease of fabrication and welding, and a long service life in high-stress situations. Their exceptional strength and chemical resistance make them a trustworthy option for critical processes.

Stainless Steel 317 Pipes Specification

Specifications	ASTM A312, A358 / ASME SA312, SA358
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range	0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type	Seamless / ERW / Welded / Fabricated / CDW
Form	Round Pipes, Square Pipes, Rectangular Pipes
Length	Single Random, Double Random & Required Length
End	Plain End, Beveled End, Treaded
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5	EN 10216 317/317L Seamless Steel Pipe, EN 10216-5 1.4449 / 1.4438 Seamless Steel Pipes for pressure purposes
EN 10217-7	EN 10217 317/317L Welded Steel Pipe, Steel EN 10217-7 1.4449 / 1.4438 Welded Pipes for pressure purposes

Stainless Steel 317 Pipes Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
317	0.08 max	2 max	1 max	0.040 max	0.03 max	18 – 20	3 – 4	11 – 14	–

SS 317 Pipes Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SS 317 Schedule 40 Pipe Price List in Bangkok, Stainless Steel S31700 Pipes Supplier in Chiang Mai, SS 317 Pipes Supplier in Thailand, ASTM A312 Stainless Steel 317 Pipe Exporter in Pattaya, AISI 317 Pipes Supplier in Chonburi, 1 inch SS 317 Pipe Price in Nonthaburi, SS 317 Pipe Weight Chart, SS 317 Schedule 20 Pipe Thickness, 317 Austenitic Stainless Steel Pipe Supplier in Thailand

Why Choose Stainless Steel 317 Pipes from Kamron Pipes and Tubes?

Choosing Stainless Steel 317 Pipes from Kamron Pipes and Tubes offers excellent corrosion resistance, making it ideal for harsh environments. Our pipes are manufactured to the highest standards, making them durable and reliable. We provide customized solutions to meet the specific needs of the business. With competitive pricing and exceptional customer service, we guarantee a smooth shopping experience. Trust Kamron for your piping needs and enjoy unparalleled performance and longevity.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 317 Pipes Supplier in Bangkok, Thailand

Kamron Pipes and Tubes, one of the largest suppliers of Stainless Steel 317 Pipes in Bangkok, Thailand, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 317 Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ASME SA 312 TP317 Pipes Rayong, Stainless Steel 317 Pipes Supplier in Thailand, 317 Stainless Steel Pipes Exporter in Pattaya, SS UNS S31700 Pipes Supplier in Bangkok, SS 317 Schedule 20 Pipe Exporter in Nonthaburi

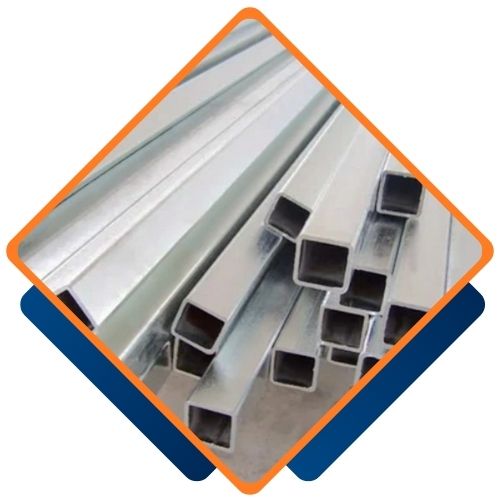

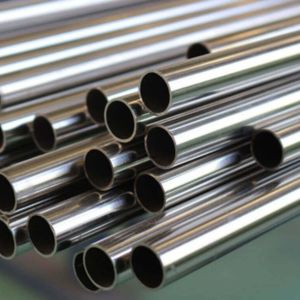

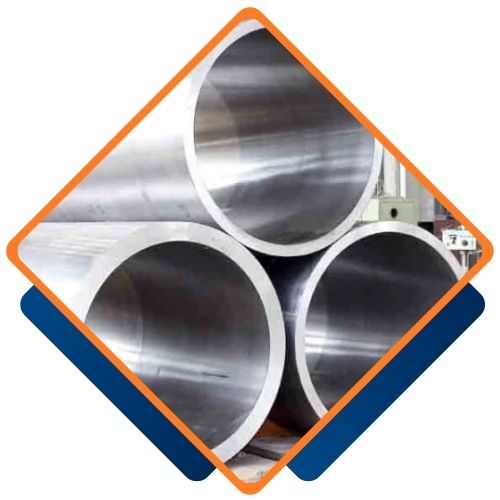

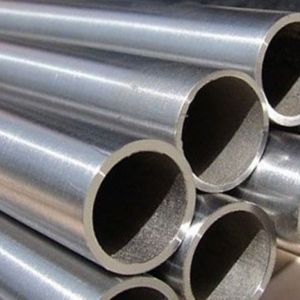

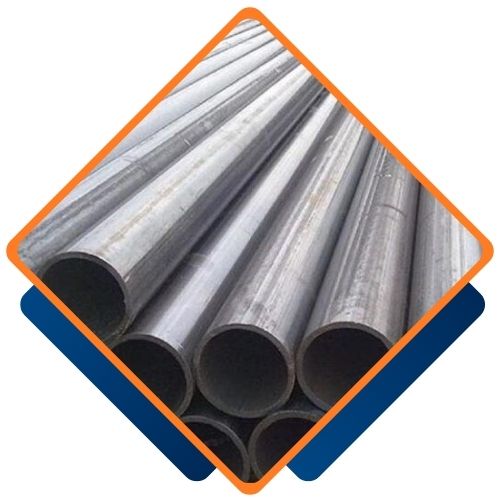

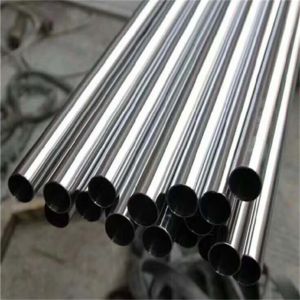

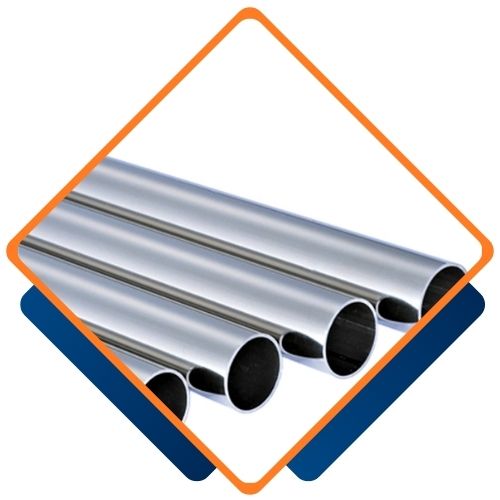

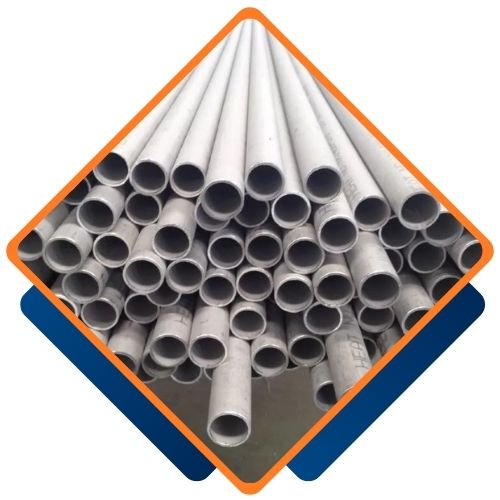

Types of Stainless Steel 317 Pipes

Are Custom Sizes Available for Stainless Steel 317 Pipes?

Yes, we offer custom sizes for Stainless Steel 317 Pipes to meet your specific requirements. Our team at Kamron Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@www.kamronpipes.com.

SS UNS S31700 Pipes Exporter in Nonthaburi, SUS 317 Pipes Supplier in Chiang Mai, 317 SS Pipes Manufacturer in Pattaya, 317 Austenitic Stainless Steel Pipe Dealer in Bangkok, Stainless Steel S31700 Pipes Manufacturer in Rayong, SS 317 Pipe Supplier in Thailand

Stainless Steel 317 Pipes find extensive use in the chemical and petrochemical industries, pulp and paper processing, and power generation sectors. They are commonly used in heat exchangers, condensers, evaporators, and pipelines that transport corrosive fluids. In marine and offshore settings, they effectively resist chloride-induced corrosion. The pharmaceutical, food, and beverage industries also take advantage of their hygienic surface and reliability in sensitive processing systems. With their impressive durability, corrosion resistance, and versatility, Stainless Steel 317 Pipes are a reliable choice for a wide range of demanding industrial applications.
