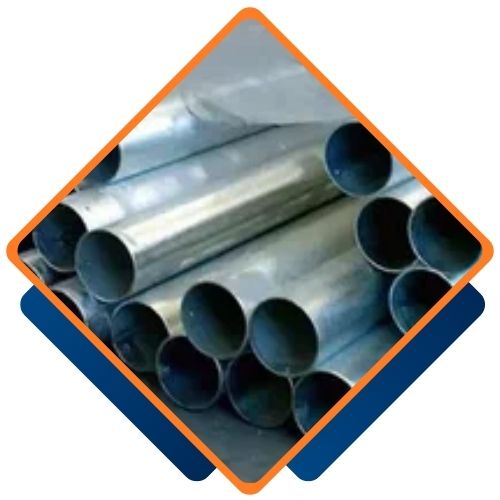

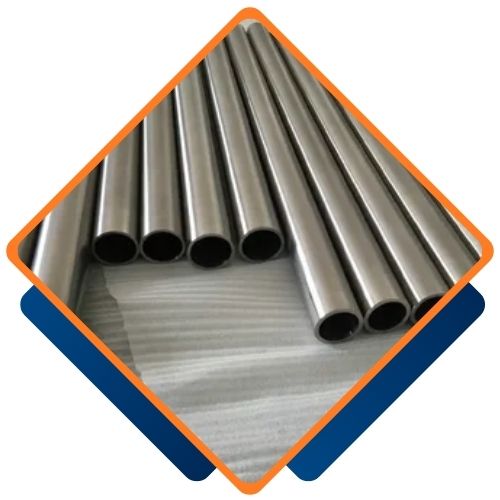

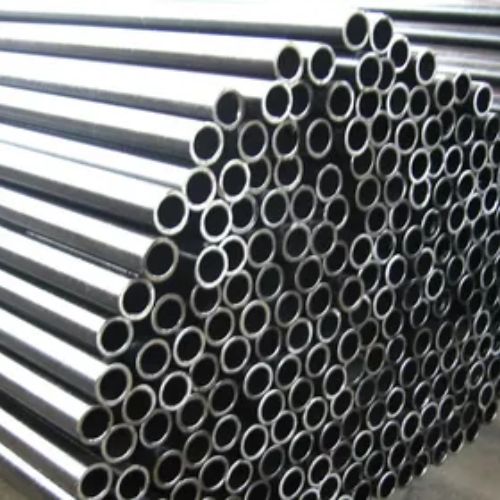

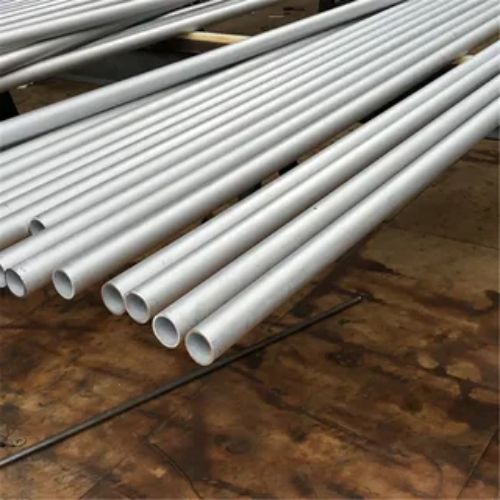

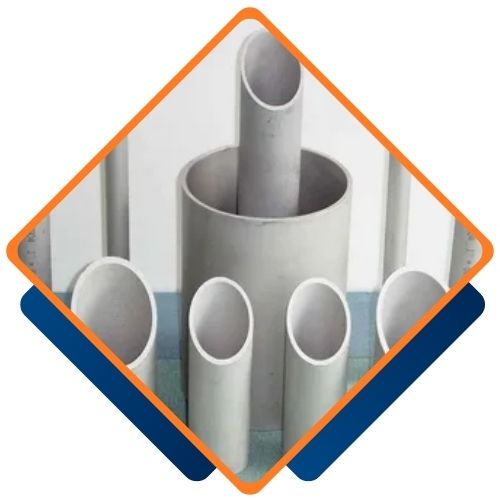

Kamron Pipe and Tubes, a Bangkok, Thailand-based company, is a reliable manufacturer and supplier of high-quality piping products with major emphasis on titanium seamless tubing. Renowned for accuracy, quality, and performance, Kamron provides tubing that adheres to the highest industry standards for strength, corrosion resistance, and dependability. Titanium seamless tubing is manufactured without any welds, providing unmatched structural stability and performance in critical applications. Serving markets like aerospace, chemical processing, marine, and medical, Kamron is dedicated to product quality and customer service excellence, gaining recognition in domestic and foreign markets.
Titanium seamless tubing is normally made from commercially pure titanium (Grades 1–4) or titanium alloys such as Grade 5 (Ti-6Al-4V). It exhibits excellent mechanical properties like high tensile strength, good corrosion resistance, and low density. The smooth structure prevents the possibility of weak points, providing balanced strength at all locations. This tubing provides superior performance under high pressure and harsh conditions. Its benefits include leak-tightness, better fatigue life, and long service life, making it suitable for precision-critical applications in harsh or sensitive environments.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |
| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Seamless Tubing from Kamron Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Kamron Pipes and Tubes, a leading supplier of Titanium Seamless Tubing in Bangkok, Thailand, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Kamron Pipes and Tubes, we provide custom sizes of Titanium Seamless Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Titanium seamless tubing is extensively used in applications where strength, reliability, and corrosion resistance are needed. It is used in hydraulic systems, fuel lines, and structural components in aerospace. It is also depended on by the chemical processing industry for conveying reactive and corrosive products. The medical industry uses it for surgical instruments and implants because of its biocompatibility. Its use in marine applications comes as a result of its resistance to seawater corrosion, and power generation plants utilize it as a heat exchanger and condenser system. Its seamless design ensures consistent performance in high-pressure and high-stress environments.
