Home > Stainless Steel >Stainless Steel 304 EFW pipes

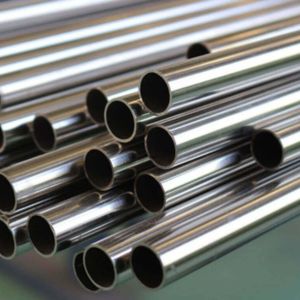

Kamron Pipe and Tubes, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Stainless Steel 304 EFW Pipes that are built to last. Known for its durability, precision, and long-lasting performance, Grade 304 is the most popular stainless steel out there. It offers fantastic corrosion resistance, strength, and is easy to work with, making it the perfect choice for Electric Fusion Welded (EFW) pipes. Kamron takes pride in adhering to international standards, ensuring that their pipes have accurate dimensions, smooth finishes, and top-quality welding. This makes their 304 EFW pipes a reliable option for industries that need dependable piping solutions in tough, corrosive, and high-pressure settings.
These Stainless Steel 304 EFW Pipes are primarily made up of chromium and nickel, which give them outstanding resistance to corrosion and oxidation. They boast impressive mechanical properties, including high tensile and yield strength, toughness, and good ductility across a wide range of temperatures. Some of the key benefits include excellent weld integrity, smooth internal surfaces that enhance fluid flow, ease of fabrication, great weldability, and a long service life even in harsh operating conditions.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 304 | min. | – | 8.0 | – | – | – | – | – | 18.0 | – |
| max. | 0.08 | 10.5 | 0.75 | 0.10 | 0.030 | 2.0 | 0.045 | 20.0 | ||
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 304 | 515 | 40 | 205 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304 EFW Pipes from Kamron Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304 | 8000 | 500 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 720 |
We offer custom sizes for Stainless Steel 304 EFW Pipes to meet your specific needs. Our dedicated team at Kamron Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@www.kamronpipes.com.
You’ll find Stainless Steel 304 EFW Pipes being used in various sectors like chemical processing, pharmaceuticals, food and beverage, oil and gas, and petrochemicals. They’re perfect for fluid transport systems, heat exchangers, condensers, and boilers that require reliable performance. Marine applications and water treatment plants also depend on these pipes for their resistance to chloride environments. With their combination of corrosion resistance, weld integrity, and durability, 304 EFW pipes are ideal for applications that demand strength, hygiene, and longevity in both structural and process industries.
