Home > Stainless Steel > Stainless Steel 316H Heat Exchanger Tubing
Kamron Pipe and Tubes, located in Bangkok, Thailand, is a renowned stainless steel manufacturer and supplier of high-quality products for critical industrial applications. One of their specialty products is Stainless Steel 316H heat exchanger tubing for high-pressure and high-temperature heat transfer processes. This tubing contains higher carbon content and provides greater strength and creep resistance, which makes it ideal for thermal processing and power generation conditions. Kamron assures its 316H heat exchanger tubing complies with global standards, providing superior strength and performance in petrochemical, oil and gas, and energy production industries.
316H stainless steel heat exchanger tubing is an austenitic stainless steel alloy containing chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and added higher carbon content (up to 0.10%) for improving high-temperature strength. These tubes have outstanding tensile strength, enhanced creep resistance, and superior corrosion protection in acidic and chloride media. Main benefits are better performance under thermal stress, weldability, and extended service life in high-pressure, high-temperature systems, which makes them the best fit for severe industrial heat transfer service.
Range : 10 mm OD to 50.8 mm OD
Outer Diameter : 6.00 mm to 101.60 mm
Wall Thickness : 0.70 mm to 8.00 mm
Length : up to 20 m (65.62 ft) Length & Customed Required Length
Specifications : ASTM A 213, A 268, A 269, A 789, Equivalent to ASME, EN, JIS Etc.
| Element | SS 316H |
| C | 0.10 max |
| Mn | 2.0 max |
| Si | 0.75 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 16.00 – 18.00 |
| Mo | 2.00 – 3.00 |
| Ni | 10.00 – 14.00 |
| Fe | 68.89 min |
| Element | SS 316H |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316H Heat Exchanger Tubing from Kamron Pipes and Tubes ensures superior quality and reliability. With expertise in precision manufacturing, Kamron Pipes and Tubes provides 316H tubing that offers exceptional strength and corrosion resistance, especially in high-temperature and corrosive environments. Their products meet stringent industry standards, ensuring long-lasting performance in demanding applications. Additionally, Kamron Pipes and Tubes is known for timely deliveries, excellent customer service, and customized solutions, making them a trusted supplier for industries like chemical processing, power generation, and oil and gas.
Kamron Pipes and Tubes, one of the largest suppliers of Stainless Steel 316H Heat Exchanger Tubing in Bangkok, Thailand, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel 316H Heat Exchanger Tubing to meet your specific requirements. Our team at Kamron Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@www.kamronpipes.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| SS 316H | 1.4401 | S31609 | SUS 316H |

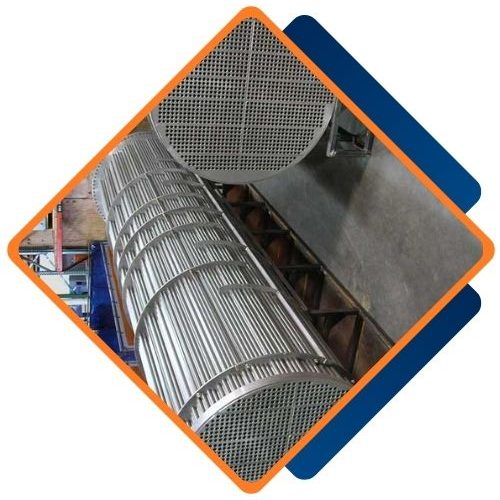

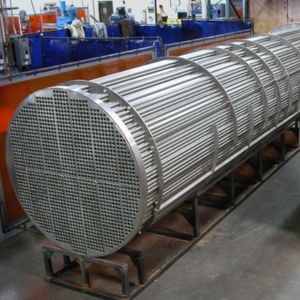

Stainless Steel 316H heat exchanger tubing is extensively applied in high-pressure and high-temperature systems where toughness and corrosion resistance are critical. The typical uses are in power plant boilers, superheaters, condensers, and heat recovery steam generators, along with chemical and petrochemical process equipment. These tubes are well suited for conveying hot fluids or gases and enduring thermal cycling and corrosive conditions. Their high mechanical strength and resistance to oxidation ensure them as a safe option for long-term use in severe heat exchanger systems.
